PROFILE

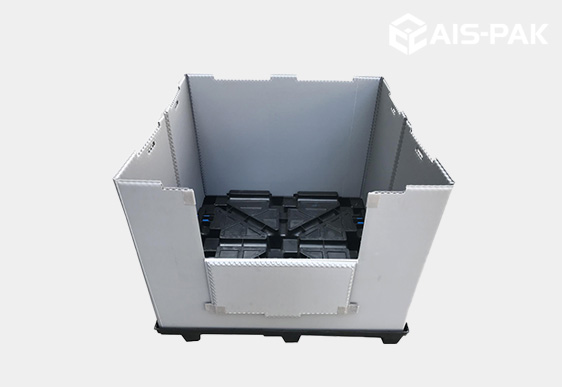

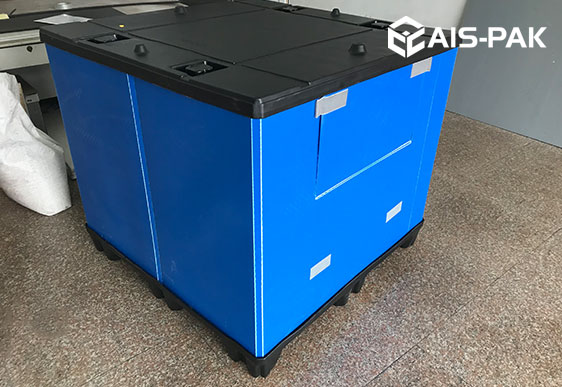

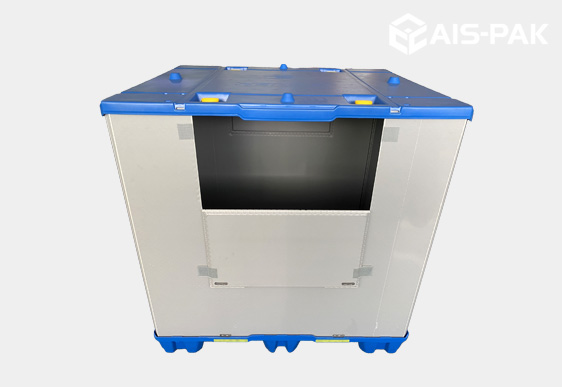

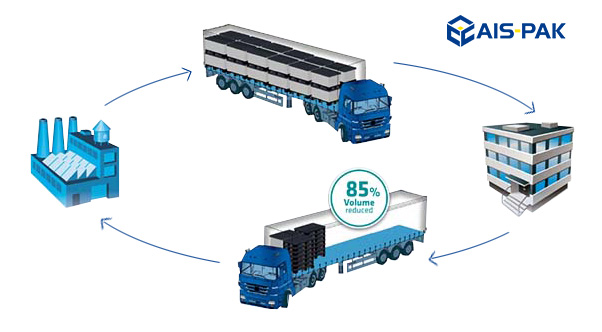

· Pallet sleeve box is a versatile ‘sleeve pack’ system consisted of 3 parts: Lid, Sleeve and Pallet, designed to store and transport more products in less space. Pallet sleeve box can be completely collapsed when empty for efficient reverse logistics.
· The twin-sheet thermoformed Lid and Pallet deliver high strength and load-carrying capacity without increasing the weight of the packaging. The reasonably designed walls and ribs provide larger internal dimensions and carrying capacity. Lid and Pallet are designed with nine feet base for anti-skid stable stacking and compatibility with all standard forklifts for easy handling.
· The Sleeve, made of high strength, high payload polypropylene structural material referred to as “honeycomb”, with high physical durability and light-weight. It’s impressive impact and compressive strength due to air-lock technology keeps damage at bay during rough transportation.
ADVANTAGES
70% lighter than a traditional bulk container
Easy to move and set-up
Lid and pallet nesting for efficiency
Interlocking lid and pallet increase stability
Replace only the part you need
Lower maintenance cost and less waste

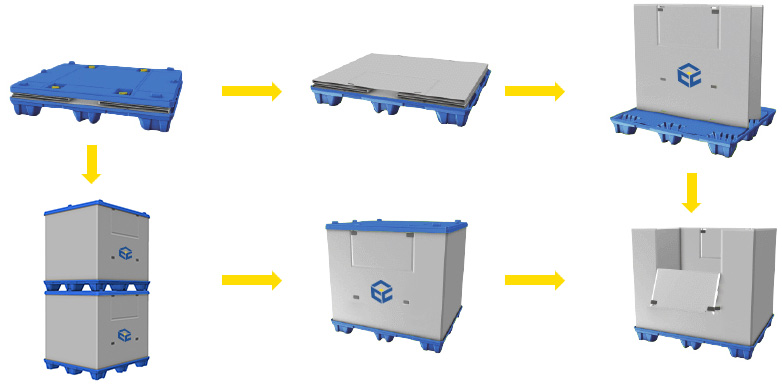

EASY ASSEMBLE
BOX SPECIFICATIONS
| NO. | EXTERNAL DIMENSIONS (in mm) | INTERNAL DIMENSIONS (in mm) | PALLET WEIGHT (in kg) | LID WEIGHT (in kg) | INTERNAL HEIGHT (in mm) |
| 1 | 1470 x 1150 | 1400 x 1070 | 15 | 13 | T.H.-200 |
| 2 | 1350 x 1150 | 1280 x 1070 | 14 | 12 | T.H.-190 |
| 3 | 1150 x 1150 | 1105 x 1105 | 10.5 | 8.5 | T.H.-170 |
| 4 | 1100 x 1100 | 1055 x 1055 | 10 | 8 | T.H.-170 |
| 5 | 1150 x 985 | 1106 x 940 | 10 | 8 | T.H.-170 |
| 6 | 1200 x 1000 | 1140 x 950 | 10 | 8 | T.H.-170 |
| 7 | 1200 x 800 | 1160 x 760 | 8.5 | 7.5 | T.H.-170 |
| 8 | 1220 x 1150 | 1160 x 1080 | 12 | 10 | T.H.-200 |
| 9 | 1600x1150 | 1540x1080 | 19 | 14 | T.H.-200 |
| 10 | 2070x1150 | 2000x1080 | 26 | 16 | T.H.-200 |
| 11 | 800x600 | 760x560 | 6 | 5 | T.H.-200 |
| 12 | 1230x1030 | 1180x980 | 10 | 8 | T.H.-200 |
| ★ Sleeves Height is Customized | |||||
